SIB 2.2ELECTROMAGNETIC TELEMETRY

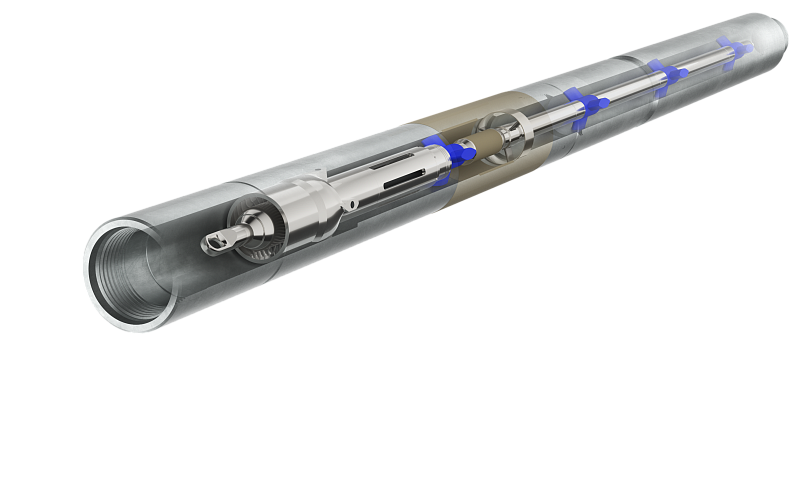

Electromagnetic telemetry tool designed to support directional drilling and logging-while-drilling operations.

Certificate of conformity reg.No.4IDY101.RU.C02359 CODE OK 034-2014 (KPES 2008) 28.92.1

Tool Family Features - SIB 2.2

Basic configuration

Turbine alternator STGS-501

Insulating downhole cable

Electro- magnetic transmitter

Directional & inclination module / Gamma module

LWD/RSS interface module

Real-time extender

Turbine alternator STGS-501

Insulating downhole cable

Electro- magnetic transmitter

Directional & inclinatio

Gamma module

Battery module SBM- 502

Turbine alternator STGS- 501

Insulating downhole cable

Electro-magnetic transmitter

Directional & inclination module

Gamma module

  • Robust design for drilling with RSS at high RPMs
  • Cost-effective EM & MP modular telemetry combination
  • Turbine alternators of proprietary design
  • Configurable real-time data and memory mode settings
  • Communication with logging tools and RSS, power supply for the entire BHA
  • Downlinks via mud flow modulation

Applications

  • High ROP drilling in EM-friendly formations
  • Managed pressure drilling (MPD) and underbalanced drilling (UBD
  • Pumping high volumes of LCMs

Benefits

  • Lowest operating costs
  • Very high data rate – up to 10 bps
  • Hybrid turbine + battery power source for underbalanced drilling

Tool specifications

Nominal OD UOM 4.75" 6.75" 8.25"
Flowrate range (Alternator or dual power) galUS/min (l/s) 127 - 380 (8 - 24) 254 - 730 (16 - 46) 254 - 1125 (16 - 71)
Minimum tool length ft(m) 23 (7) 23 (7) 23 (7)
Threads NC38 5 1/2 FH 6 5/8 FH
Maximum bitrate bps 10 10 10
Downlink type Flow modulation, EM downlink Flow modulation, EM downlink Flow modulation, EM downlink Flow modulation, EM downlink
Operating temperature range °F (°С) +41 to +258 (+5 to +125) +41 to +258 (+5 to +125) +41 to +258 (+5 to +125)
Maximum operating pressure psi (MPa) 11600 (80) 11600 (80) 11600 (80)
Maximum mud sand content % 4, well-mixed, recommended <1 4, well-mixed, recommended <1 4, well-mixed, recommended <1
Maximum LCM concentration ppb No limit from the MWD tool No limit from the MWD tool No limit from the MWD tool
Maximum DLS rotating °/100 ft 12 10 9
Maximum DLS sliding °/100 ft 18 15 12

Measurement specifications

Parameter Accuracy Resolution
Inclination ± 0.15° 0.1°
Azimuth above 6 deg. inclination ± 1.5° 0.1°
Toolface ± 1.5° 6°
Natural gamma ray ± 1 % 1 API
