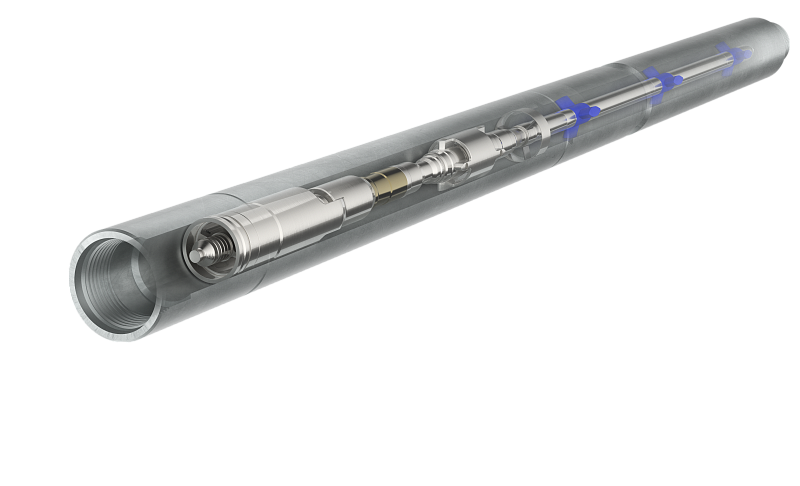

SIB 2.4MMUD PULSE TELEMETRY

Certificate of conformity reg.No. ROSS RU.0001.11AV67. Certificate of type approval of measuring instruments RU.C.27.007.A No.38820

Tool Family Features - SIB 2.4M

Basic configuration

Mud pulser

Turbine alternator STGS-602

Mud pulser driver

Directional & inclination module

Gamma module

Mud pulser

Turbine alternator STGS-602

Mud pulser driver

Directional & inclination module / Gamma module

LWD/RSS interface module

Real-time extender

Mud pulser

Turbine alternator STGS-602

Mud pulser driver

Directional & inclinatio n module

Gamma module

Battery module SBM- 502

  • Robust design for drilling with RSS at high RPMs
  • Cost-effective EM & MP modular telemetry combination
  • Turbine alternators of proprietary design
  • Configurable real-time data and memory mode settings
  • Communication with logging tools and RSS, power supply for the entire BHA
  • Downlinks via mud flow modulation

Applications

  • Long and deep wells, any hole sections

Benefits

  • Proven mud operated pulser design
  • High data rate – up to 3 bps
  • Turbine or battery power source for any environment

Peculiarities

  • Robust construction for drilling with RUS with high rotation speed
  • Ease of combining EM and hydraulic transmission channel
  • Borehole generator of original design

Tool specifications

Nominal OD UOM 4.75" 6.75" 8.25"
Pulser type Mini-MOP Low-flow MOP Low-flow MOP
High-flow MOP
Flowrate range galUS/min 158 -380 349 - 730 428 - 900
713 - 1125
Alternator or dual power l/s 10 - 24 22 - 46 27 - 57
45 - 71
Flowrate range galUS/min 125 -380 250 - 750 250 - 900
375 - 1125
Battery power l/s 8 - 24 16 - 47 16 - 57
24 - 71
Minimum tool length ft(m) 23 (7) 23 (7) 23 (7)
Threads NC38 5 1/2 FH 6 5/8 FH
Maximum bitrate bps 3 3 3
Downlink type Flow modulation Flow modulation Flow modulation
Operating temperature range °F (°С) +41 to +258 (+5 to +125) +41 to +258 (+5 to +125) +41 to +258 (+5 to +125)
Maximum operating pressure psi (MPa) 11600 (80) 11600 (80) 11600 (80)
Maximum mud sand content % 1, by volume 1, by volume 1, by volume
Maximum LCM concentration ppb 40, medium nut plug 40, medium nut plug 40, medium nut plug
Maximum DLS rotating °/100 ft 12 10 9
Maximum DLS sliding °/100 ft 18 15 12

Key measurements

  • Direction and inclination, including continuous measurements
  • Cost-effective EM & MP modular telemetry combination
  • Shock and vibration

Measurement specifications

Parameter Accuracy Resolution
Inclination ± 0.15° 0.1°
Azimuth above 6 deg. inclination ± 1.5° 0.1°
Toolface ± 1.5° 6°
Natural gamma ray ± 1 % 1 API
